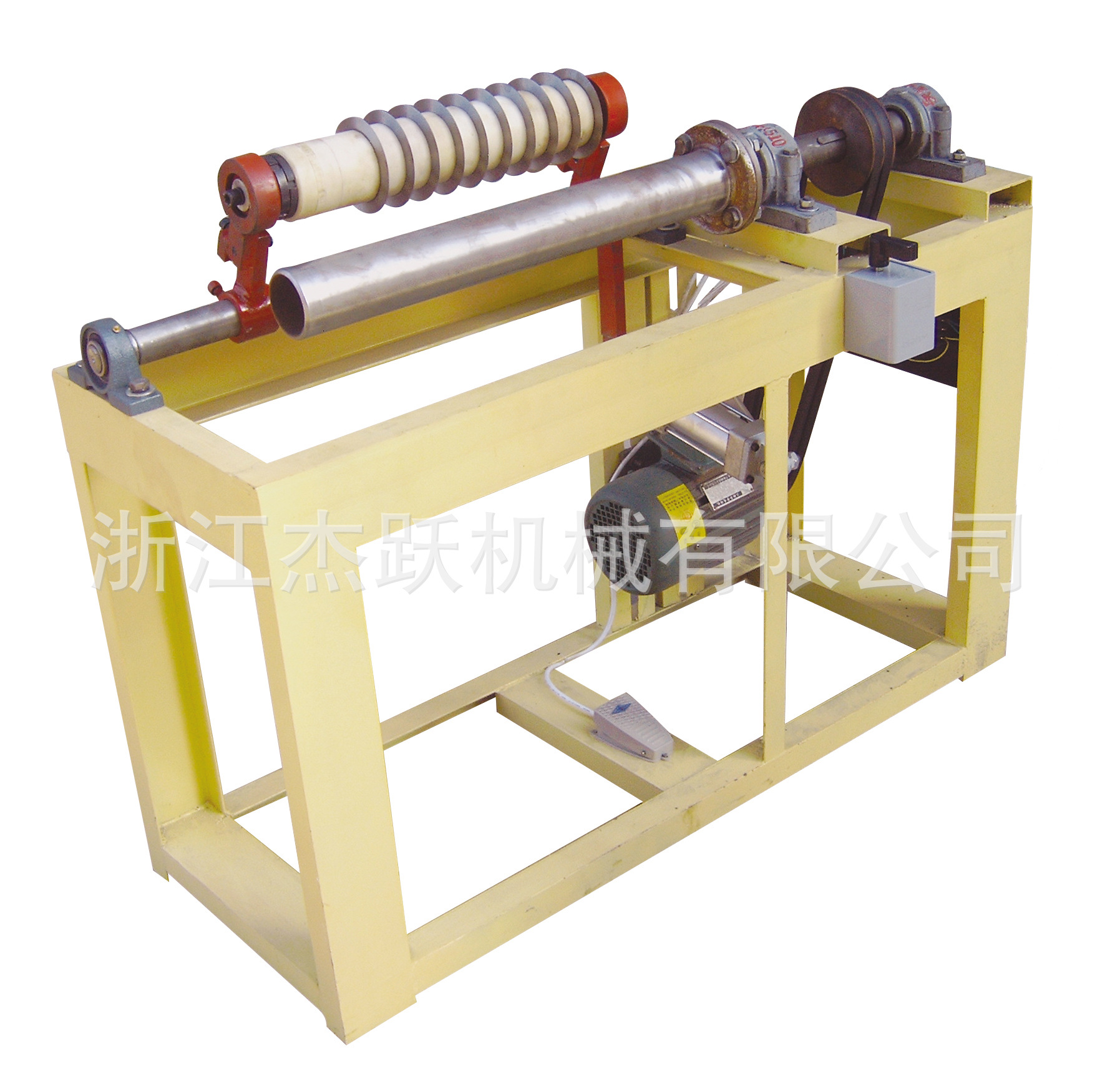

用途：适用于各类长度较短，产量较高的纸管切割。
特点：
1.简易、操作方便和价位低；
2.气动切割；3.速度快；
4.能切出宽度较窄的纸管。
USE:
Suitable for cutting all kinds of tube which short-length and high production
FEATURE:
1. Easy operation with low price; 2.Pneumatic cutting;
3.High speed; 4. For cutting narrow width paper tube ( min 5 mm)
|
技术参数 |
|
|
纸管长度 |
5-500 mm |
|
纸管内径 |
15-150 mm |
|
纸管厚度 |
0.5-5 mm |
|
切管速度 |
10-30 time/min |
|
切刀数量 |
5 |
|
切割方式 |
刀、轴同步转 |
|
送卸料方式 |
手动 |
|
切刀给进方式 |
气动 |
|
电机功率 |
1.1 KW |
|
主机尺寸 |
1200*500*600 mm |
|
重量 |
150 KG |
|
Technical parameter |
|
|
Tube length |
5-500 mm |
|
Tube diameter |
15-150 mm |
|
Tube thickness |
0.5-5 mm |
|
Cutting speed |
10-30 time/min |
|
Blade quantity |
5 |
|
Cutting way |
Blade and axis rotate |
|
Load and unload |
Manual |
|
Blade Feeding way |
Pneumatic |
|
Main motor |
1.1 KW |
|
Mainframe size |
1200*500*600 mm |
|
Weight |
150 KG |
